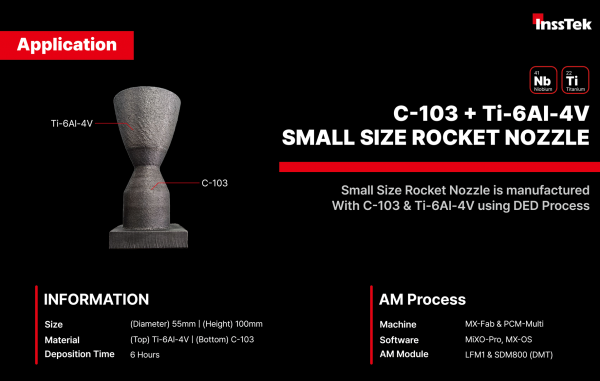

"C-103 + Ti-6Al-4V Small Size Rocket Nozzle"
InssTek successfully manufactured bimetallic rocket nozzle using DED process.
This work follows the bonding test using two different materials conducted a few months ago.
The purpose of this process is that integrated components that meet different requirements for each part can be produced without assembly.
We have used our internal technology for the entire process, from testing for each alloy to obtaining process variables to designing and actual printing.
[PART Information]
Material: (Top) Ti-6Al-4V(Ti Alloy) / (Bottom) C-103(Nb Alloy)
Size: (Diameter) 55mm (Height) 100mm
Deposition Time: 6 hours
InssTek successfully manufactured bimetallic rocket nozzle using DED process.
This work follows the bonding test using two different materials conducted a few months ago.
The purpose of this process is that integrated components that meet different requirements for each part can be produced without assembly.
We have used our internal technology for the entire process, from testing for each alloy to obtaining process variables to designing and actual printing.
[PART Information]
Material: (Top) Ti-6Al-4V(Ti Alloy) / (Bottom) C-103(Nb Alloy)
Size: (Diameter) 55mm (Height) 100mm
Deposition Time: 6 hours
